High speed digital video cameras for slow motion analysis

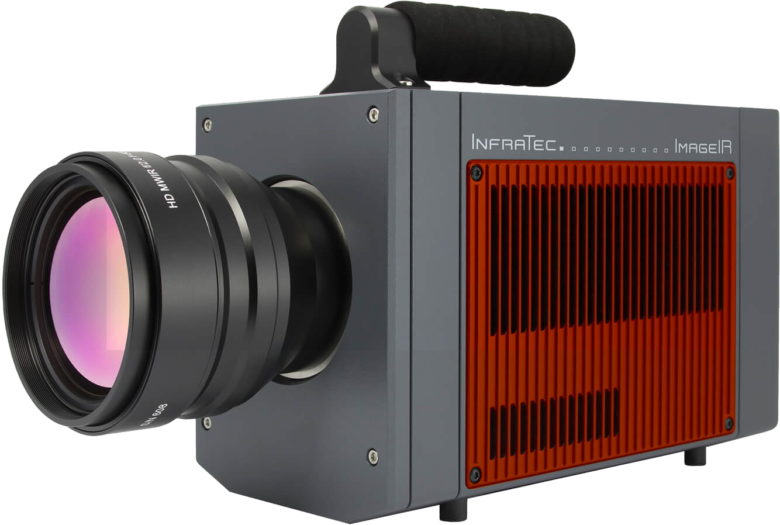

InfraTec Image IR 10300

image description
spectral range 3.6 μm to 4.9 μm
image description
max resolution at fps 1920 x 1536 at 100 fps
image description
max fps 2500

InfraTec’s high-end camera series ImageIR® excels in metrological performance characteristics and in unknown compactness and variability. Users who depend on extremely flexible camera technology with a maximum of sensitivity, accuracy, geometrical resolution and speed, the perfect solution can be received with the ImageIR®. The modular concept makes it easy to adapt the individual system configurations and performance data to the respective application.

  • Sample Record Rates: 1920 x 1536 at 100 fps; 960 x 768 at 300; 480 x 384 at 690
  • Minimum Shutter: 1 μs
  • Sensor: Cooled InSb
  • Temperature Measuring Range: -40 to 500 °C
  • Measurement accuracy: ± 1 °C or ± 1 %
  • Temperature resolution @ 30°C: Up to 0.02 K
  • Warranty: 2 Years
  • Special Features: 10GigE
  • Dynamic Range: 16 bit
  • Budgetary Range: See "Camera Guideline" button in top right of this page
Lens Options: 25mm (Wide), 50mm (Standard), 100mm (Telephoto), Other Macro and Microscopic Options
Models: Part of the InfraTec ImageIR Series (Other models include 8300, 8300 hp, 8855, 9300, & 9400). See Camera Guideline for comparison of models.
Other Options Include: Filter Wheel, Various levels of Measurement Software

HIGH SPEED DIGITAL VIDEO CAMERAS FOR SLOW MOTION

High speed imaging enables the user to perform detailed visual and/or digital motion analysis of machinery, projectiles, wildlife and human motions. Our cameras have been applied in a wide variety of areas including the military, industrial, research, education and broadcasting markets.
